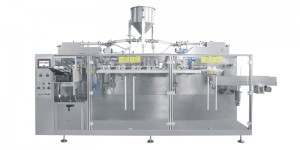

Horizontal Shape Doypack Bag Packager

contact us



Technical Parameter

Model Pouch Width Pouch Length Filling Capacity Packaging Capacity Function Weight Power Air Consumption Machine Dimensions(L*W*H)
BHD-240DS 80- 120mm 120-250mm 300ml 70-90ppm DoyPack,Shape 2300 kg 11 kw 400 NL/min 6050mm×1002mm×1990mm

Packing Process

  • 1Film Unwinding
  • 2Bottom Hole Punching
  • 3Bag Forming Device
  • 4Film Guide Device
  • 5Photocell
  • 6Bottom Seal Unit
  • 7Vertical Seal
  • 8Tear Notch
  • 9Servo Pulling System
  • 10Cutting Knife
  • 11Pouch Opening Device
  • 12Air Flushing Device
  • 13Filling Ⅰ
  • 14Filling Ⅱ
  • 15Pouch Stretching
  • 16Top Sealing Ⅰ
  • 17Top Sealing Ⅱ
  • 18Outlet

Product Advantage

Servo Advance System

Servo Advance System

Easy computerized specification change
Stable pouch advance with less deviation
Big torquemoment of pouch advance, suitable for big volume

Photocell System

Photocell System

Full spectrum detection, Accurate detection of all light sources
High speed motion mode

Shape Function

Shape Function

Special shape bar design
Vertical stand reduces fuel consumption

Product Application

BHD-130S/240DS Series designed for doypack,  with functions of making hanging hole,  special shape,  zipper and spout.

  • ◉Powder
  • ◉Granule
  • ◉Viscosity
  • ◉Solid
  • ◉Liquid
  • ◉Tablet
shape (4)
shape (3)
shape (2)
shape (1)
shape (5)
