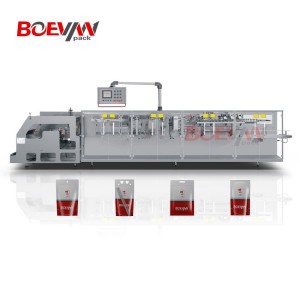

Standard Doypack Bag Packing Machine

The Standard Doypack Bag Packing Machine is a very popular packaging machine. Boevan offers both roll-flim forming filling sealing machines and pre-made bag packaging machines.

contact us

PRODUCT DETAIL

Video

The HFFS Standard Doypack Bag Packing Machine is a multi-functional flexible bag packaging machine. It can handle stand-up bag forming, filling, and sealing, and can also be used for flat bag packaging. To achieve flat bag packaging, simply reduce the number of operations.

Based on your product characteristics and market demands, Doypack's packaging has been upgraded, extending to include spout stand-up pouches, zipper stand-up pouches, irregularly shaped pouches, and hanging hole pouches. This type of packaging machine can be selected for all of these types.

Technical Parameter

Model Pouch Width Pouch Length Filling Capacity Packaging Capacity Function Weight Power Air Consumption Machine Dimensions(L*W*H)
BHD- 130S 60- 130mm 80- 190mm 350ml 35-45ppm DoyPack,Shape 2150 kg 6 kw 300NL/min 4720mm×1 125mm×1550mm
BHD-240DS 80- 120mm 120-250mm 300ml 70-90ppm DoyPack,Shape 2300 kg 11 kw 400 NL/min 6050mm×1002mm×1990mm

Padking Process

process1
  • 1Film Unwinding
  • 2Bottom Hole Punching
  • 3Bag Forming Device
  • 4Film Guide Device
  • 5Photocell
  • 6Bottom Seal Unit
  • 7Vertical Seal
  • 8Tear Notch
  • 9Servo Pulling System
  • 10Cutting Knife
  • 11Pouch Opening Device
  • 12Air Flushing Device
  • 13Filling Ⅰ
  • 14Filling Ⅱ
  • 15Pouch Stretching
  • 16Top Sealing Ⅰ
  • 17Top Sealing Ⅱ
  • 18Outlet

Product Application

BHD-130S/240DS Series designed for doypack,  with functions of making hanging hole,  special shape,  zipper and spout.

  • ◉Powder
  • ◉Granule
  • ◉Viscosity
  • ◉Solid
  • ◉Liquid
  • ◉Tablet
spout pouch (4)
app (4)
app (6)
app (2)
app (3)
app (1)
