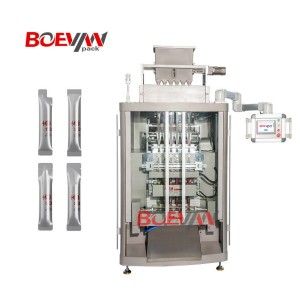

Multilane Stick Bag Packing Machine

Boevan’s multi-lanes stick bag packaging machine is a high-speed servo roll film packaging equipment. It can package products ranging from 1-60ml/gram at speeds up to 600ppm. It is commonly used for packaging candy bars, coffee, milk powder, portable daily chemical products (mouthwash), oral liquids, etc.

contact us

PRODUCT DETAIL

Technical Parameter

Boevan's Multi-row Stick Packing Machine can be customized for 1-12 lanes, different type of this machine packing capacity is different.

Model Pouch Width Pouch Length Packaging Capacity Weight Machine Dimensions(L*W*H)
BVS 2-220 20-45mm 50-180mm 60-100ppm 400 kg 815*1155*2285mm
BVS 4-480 17-50mm 50-180mm 120-200ppm 1800 kg 1530*1880*2700mm
BVS 6-680 17-45mm 50-180mm 180-340ppm 2000 kg 1730*1880*2700mm
BVS 8-880 17-30mm 50-180mm 240-400ppm 2100kg 1980*1880*2700mm
BVS 10-880 17-30mm 50-180mm 300-500ppm 2300kg 2180*1880*2700mm



Product Advantage

high speed multilane powder stick bag packing machine

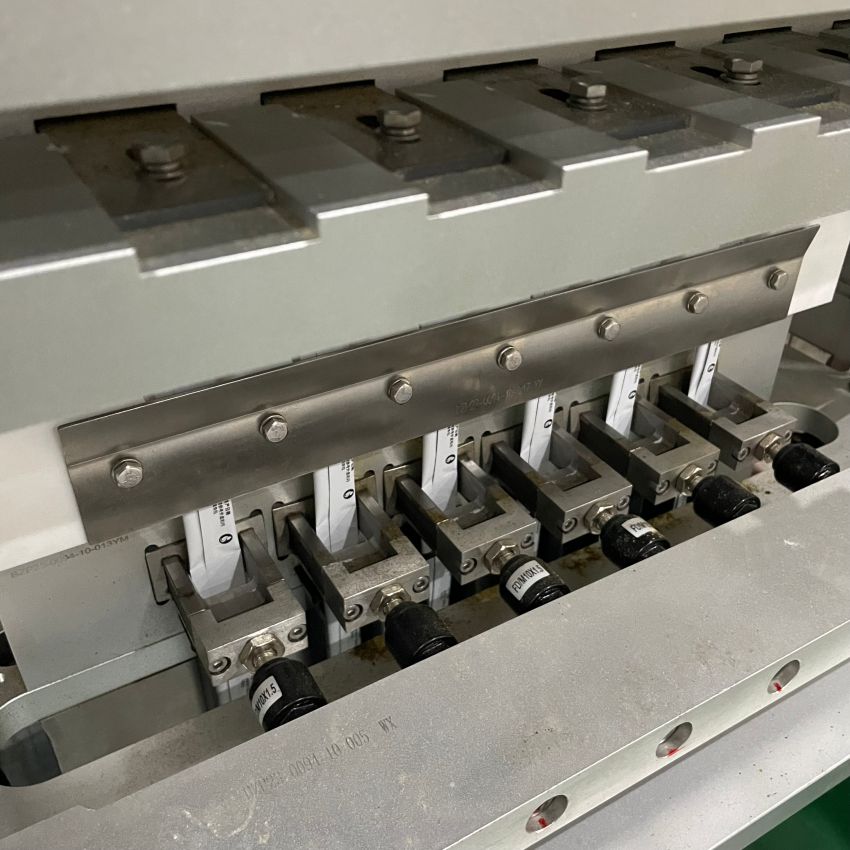

Servo Advance System

Easy computerized specification change
Stable pouch advance with less deviation
Big torquemoment of pouch advance, suitable for big volume

stick pack machine (8)

Independent control system

Regionalized management of filling volume

Solve unstable material feeding

multilane sachet machine (5)

Secondary tension control

Solve membrane misalignment problem

Prevent misalignment

Product Application

BVS Series designed for stick bag ,  with functions of making speical shaped, 1-12 lanes can be customized

  • ◉Powder
  • ◉Granule
  • ◉Viscosity
  • ◉Solid
  • ◉Liquid
  • ◉Tablet
jelly stick bag
shaped bag gel
multilane stick (2)
app (2)
app (3)
app (1)
