Multilane Liquid Stick Pack Machine

Boevan Multilane Stick Bag Packaging Machine for Liquid, it is a automatic vertical forming filling and sealing packing machine can automatically complete the multi column automatic quantitative measurement, automtic filling, bag forming , sealing, cutting, printing production date and other functions.

PRODUCT DETAIL

Video

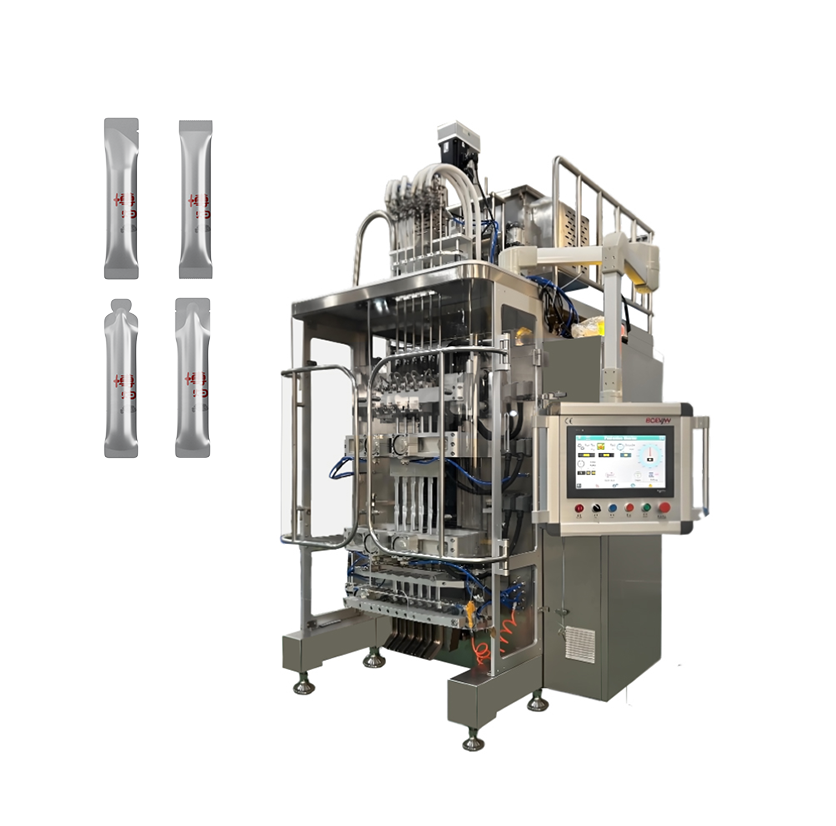

Multilane Stick Bag Packing Machine for Liquid

Boevan's BVS series multi-lane high-speed stick bag packaging machines are commonly used for packaging liquid pastes such as honey, coffee concentrate, mouthwash, portable oral liquid, jelly, yogurt, cat strips, etc. in small bags or special-shaped stick bags.

Technical Parameter

Model	BVS220	BVS 2-220	BVS 4-480	BVS 6-680	BVS 8-880	BVS 10-880
Pouch Width	20-70mm	20-45mm	17-50mm	17-45mm	17-45mm	17-40mm
Pouch Length	50-180mm	50-180mm	50-180mm	50-180mm	50-180mm	50-180mm
Packing Speed	25-50ppm	50-100ppm	120-200ppm	180-300ppm	240-400ppm	300-500ppm
Machine Dimensions（LWH)	81511552285mm	81511552260mm	153018802700mm	173018802700mm	180020002700mm	190020002700mm
Weight	400kg	400kg	1800kg	2000kg	2100kg	2200kg
The above are conventional models. Multi-row packaging machines can be customized according to production needs. If you have more requirements, please contact us for consultation.
