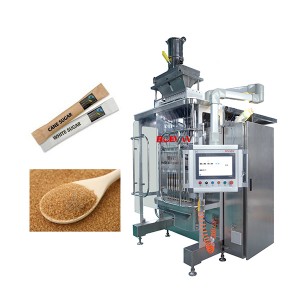

Multi-lane Sugar Stick Pack Machine

Multi-lanes stick bag packaging machines are one of Boevan’s main products. These high-speed vertical roll form-fill-seal machines are primarily used for packaging small-weight products ranging from 1-60ml. Fully automatic multi-row stick machines are widely used for packaging portable suagr sticks, instant coffee, oral liquids, probiotics, mouthwash, cat treats, etc.

PRODUCT DETAIL

Video

https://www.boevanpack.com/vffs-machine/

Technical Parameter

Model	Pouch Lenth	Pouch Width	Packaging Capacity	lanes No.
BVS-220	20-70mm	50-180mm	Max.600ppm	1
BVS 2-220	20-45mm	50-180mm		2
BVS 4-480	17-50mm	50-180mm		4
BVS 6-680	17-45mm	50-180mm		6
BVS 8-680	17-30mm	50-180mm		8

Note: Depending on actual production capacity, bag width, and speed requirements, 1-12 row models can be selected. Please contact us for more information on other models.

Product Advantage

1.45° oblique vertical sealing, more beautiful sealing;
2. The sealing block does not directly contact the forming tube during sealing to avoid material deterioration and damage
4. High-speed multi-row machine, the speed can reach 50 cuts/row/minute;
5. Add nitrogen filling function according to actual needs, the residual oxygen content is less than 3%;
