Looking for a truly fully automatic, versatile soft bag packaging machine? Shanghai Boevan, a leader in soft bag packaging, provides professional packaging solutions for various industries.

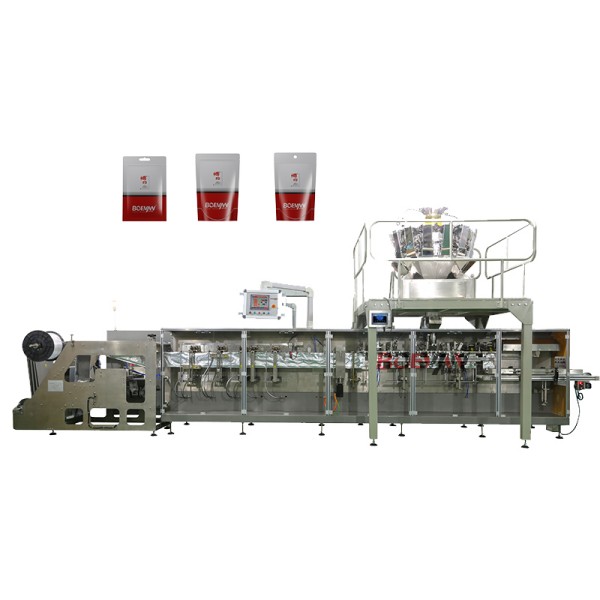

Our horizontal roll film zipper bag packaging machine accommodates a variety of bag design requirements, including custom-shaped bags and those with hanging holes.
Technical Parameter
| Model | Pouch Width | Pouch Length | Filling Capacity | Packaging Capacity | Function | Weight | Power | Air Consumption | Machine Dimensions(L*W*H) |
| BHD- 180SZ | 90-180mm | 110-250mm | 1000ml | 35-45ppm | DoyPack,Zipper Bag,Hanging-Hole | 2150 kg | 6 kw | 300NL/min | 4720mm×1 125mm×1550mm |
| BHD-240SZ | 100-240mm | 120-320mm | 2000ml | 40-60ppm | DoyPack,Zipper Bag,Hanging-Hole | 2300 kg | 11 kw | 400 NL/min | 6050mm×1002mm×1990mm |
| BHD-280DSZ | 90-140mm | 110-250mm | 500ml | 60-100ppm | DoyPack,Zipper Bag,Hanging-Hole | 2500kg | 15.5kw | 400 NL/min | 8200x1300x1800mm |
Product Advantage

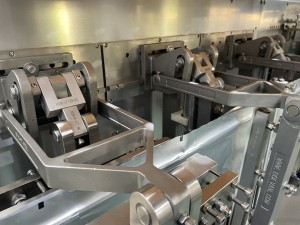

Servo Advance System
Easy computerized specification change
Stable pouch advance with less deviation
Big torquemoment of pouch advance, suitable for big volume

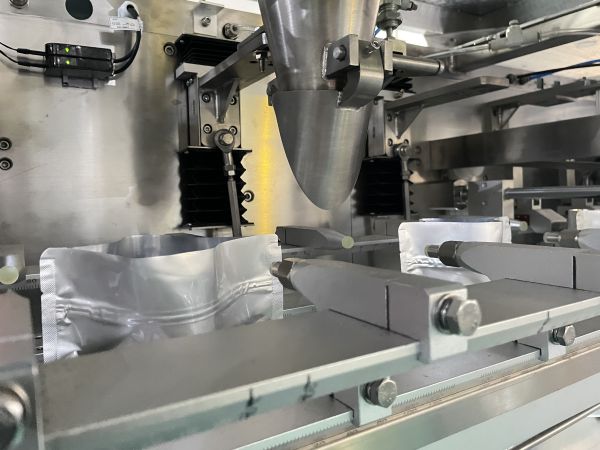

Filling System
Dual-discharge unloading doubles production capacity
Multiple unloading methods accommodate a wider range of products

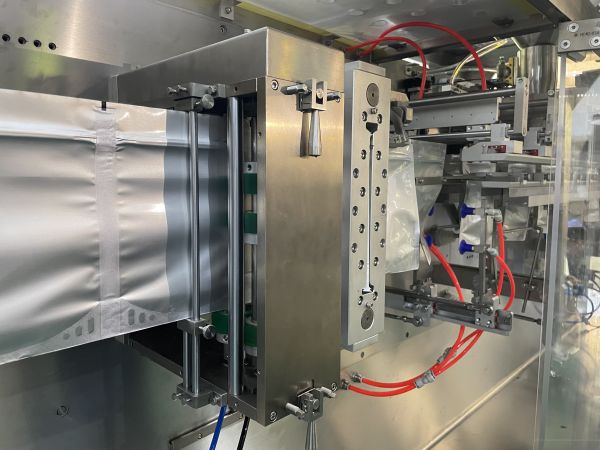

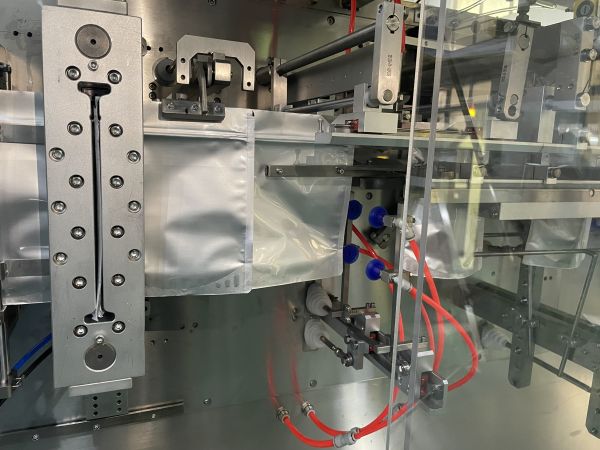

Zipper Function
The seal is strong and will not fall off after repeated tearing.
It better meets customer needs.
Product Application
BHD-130S/240DS Series designed for doypack, with functions of making hanging hole, special shape, zipper and spout.
- ◉Powder
- ◉Granule
- ◉Viscosity
- ◉Solid
- ◉Liquid
- ◉Tablet
