Horizontal Spout Pouch Form-Fill-Seal Packing Machine

Boevan horizontal spout pouch form fill seal packing machine designed for center and corner spouts (valve).
This pouch packing machine with a suction nozzle is used for filling and packaging powders, small granules, liquids, and viscous products. Inquiries welcome.

contact us

PRODUCT DETAIL

Video

flaexible packing machine

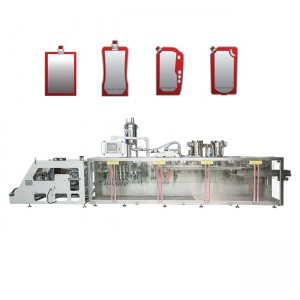

Boevan Horizontal Spout Pouch Form-Fill-Seal Machine

Boevan spout pouch packaging machines can be used to package corner spout pouches, center spout pouches, and bags with valves, whether flat or stand-up pouches.

Spout pouch packaging is widely used in the daily chemical, cosmetics, food, beverage, and condiment industries. Common products include detergents, spreadable facial masks, cereals, solid and liquid beverages, and tomato and masala sauces.

For spout pouch packaging, Boevan offers 5 models:
1. Horizontal doypack form fill and seal machine
2. Horizontal flat-pouch form fill and seal machine
3. Horizontal spout pouch filling and sealing machine
4. Rotary spout pouch filling and capping machine
5. Rotary pemade spout pouch filling and sealing machine

Which machine do you prefer? Contact me for more information!

Technical Parameter

Model Pouch Width Pouch Length Filling Capacity Packaging Capacity Function Weight Power Air Consumption Machine Dimensions(L*W*H)
BHD-180SC 90-180mm 110-250mm 1000ml 35-45ppm DoyPack,Shape,Spout,Hanging-hole 2150 kg 6 kw 300NL/min 4720mm×1 125mm×1550mm
BHD-240SC 100-240mm 120-320mm 2000ml 40-60ppm DoyPack,Shape,Spout,Hanging-hole 2500 kg 11 kw 400 NL/min 6050mm×1002mm×1990mm
BHD-360DSC 90-180mm 110-250mm 900ml 80-100ppm DoyPack,Shape,Spout,Hanging-hole 2700kg 13 kw 400 NL/min 8200mm×1300mm×1990mm

Product Advantage

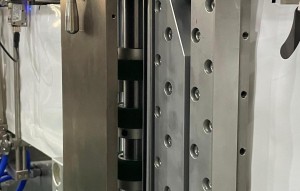

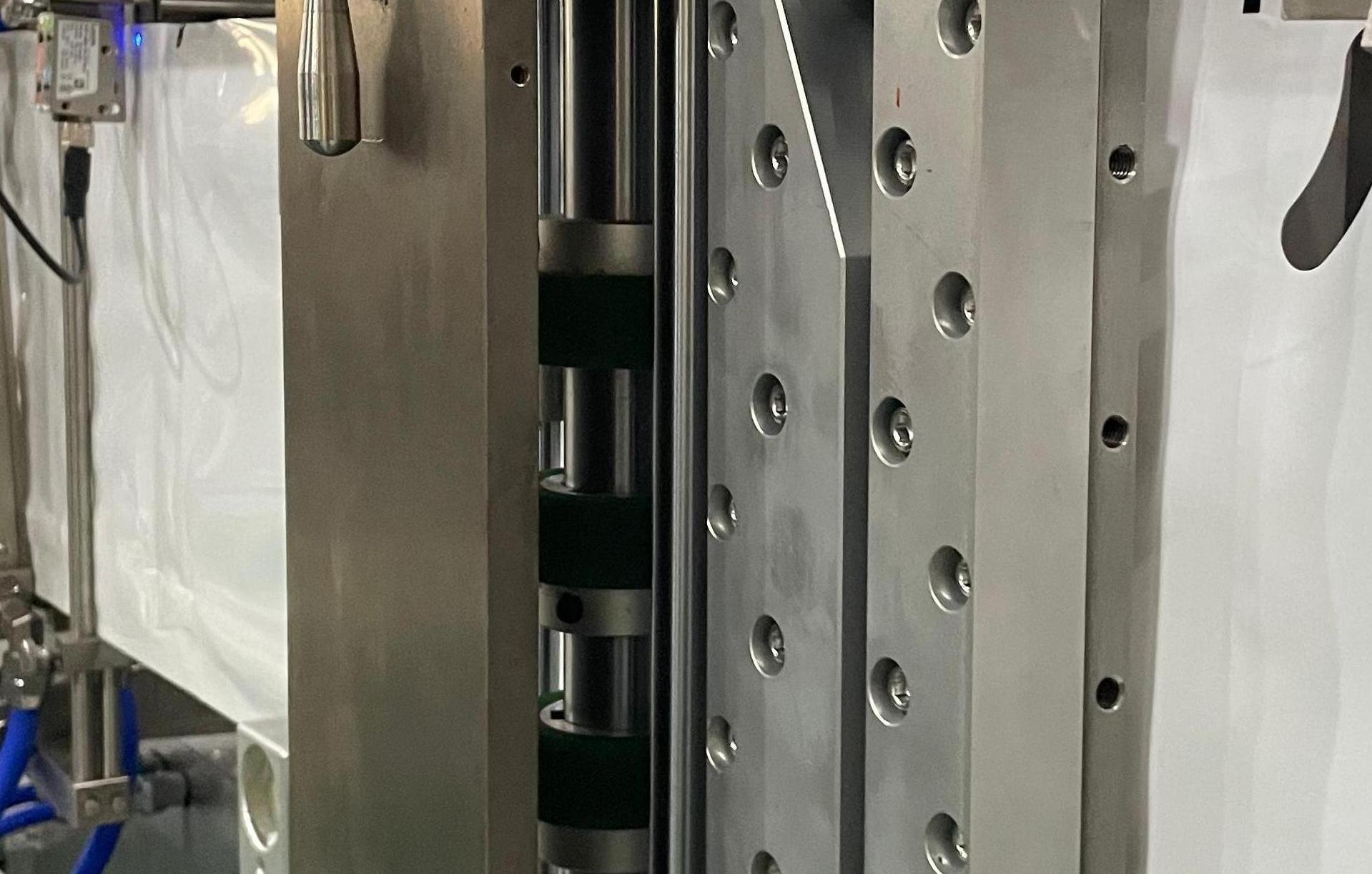

Servo Advance System

Servo Advance System

Easy computerized specification change
Stable pouch advance with less deviation
Big torquemoment of pouch advance, suitable for big volume

Photocell System

Photocell System

Full spectrum detection, Accurate detection of all light sources
High speed motion mode

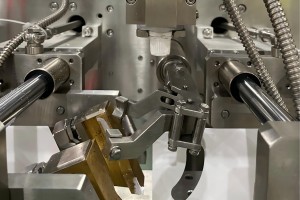

spout inderting(1)

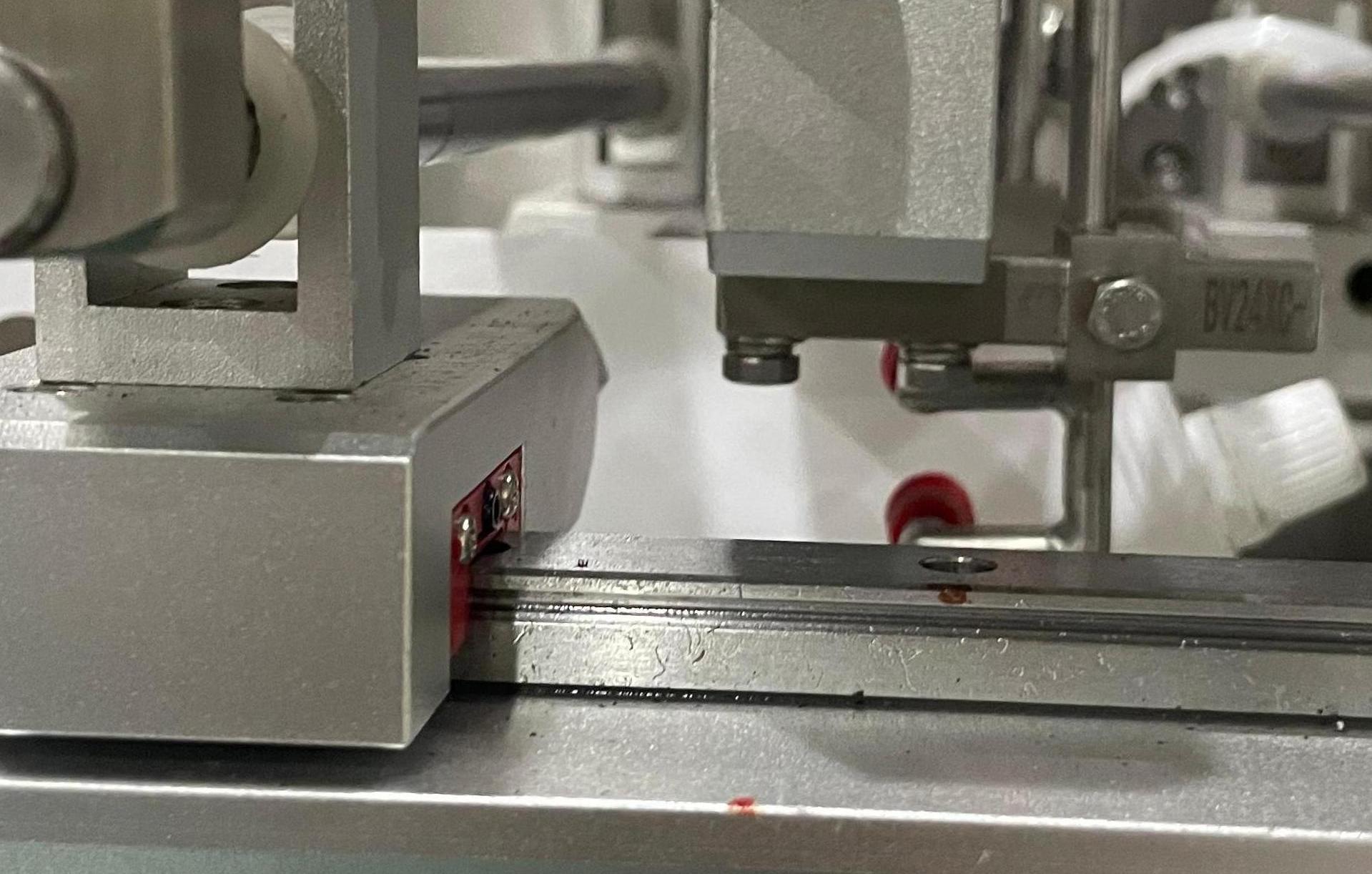

Spout Function

Center spout or corner spout can be customized



Product Application

BHD Horizontal form fill seal packing machine designed for doypack,  with functions of making hanging hole,  special shape,  zipper and spout.

  • ◉Powder
  • ◉Granule
  • ◉Viscosity
  • ◉Solid
  • ◉Liquid
  • ◉Tablet
spout pouch (5)
spout pouch (4)
app (6)
spout pouch (6)
spout pouch (1)
veterial pillow (2)
