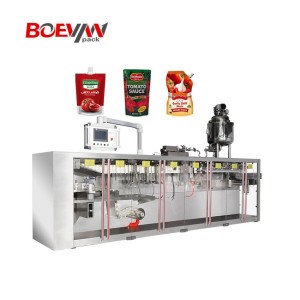

Horizontal Doypack Packing Machine for Ketchup

Boevan specializes in providing flexible pouch packaging solutions for sauce products such as ketchup, mayonnaise, salad dressing, and chili sauce. Their BHD model horizontal packaging machines can provide various types of packaging, including stand-up pouches, flat bags, zipper bags, and spout bags.

PRODUCT DETAIL

Video

Boevan boasts a professional technical and production team, providing flexible bag packaging solutions and equipment manufacturing for various industries. Over 30 engineers with production experience offer their services.

Our servo-driven horizontal packing machine can adapt to various feeding methods for precise and refined production, meeting the needs of multiple bag types. Are you still facing packaging difficulties with your products? Feel free to contact us!

Technical Parameter

Model	Pouch Width	Pouch Length	Filling Capacity	Packaging Capacity	Function	Weight	Power	Air Consumption	Machine Dimensions(LWH)
BHD- 180S	60- 130mm	80- 190mm	350ml	35-45ppm	DoyPack,Shape	2150 kg	6 kw	300NL/min	4720mm×1 125mm×1550mm
BHD- 240s	100-240mm	120-320mm	2000ml	40-60ppm	Doypack, Shape, Hanging-Hole, Zipper, Spout	2500kg	11kw	400 NL/min	7000mm1243mm1878mm
BHD-240DS	80- 120mm	120-250mm	300ml	70-90ppm	Doypack, Shape, Hanging-Hole, Zipper, Spout	2300 kg	11 kw	400 NL/min	6050mm×1002mm×1990mm
BHD-280DS	90-140mm	110-250mm	500ml	80-100ppm	Doypack, Shape, Hanging-Hole, Zipper, Spout	2350kg	15.5kw	400 NL/min	7800mm1300mm1878mm
BHD-360DS	90-180mm	110-250mm	900ml	80-100ppm	Doypack, Shape, Hanging-Hole, Zipper, Spout	2550kg	18kw	400 NL/min	8000mm1500mm2078mm

Padking Process

1Film Unwinding
2Bottom Hole Punching
3Bag Forming Device
4Film Guide Device
5Photocell
6Bottom Seal Unit
7Vertical Seal
8Tear Notch
9Servo Pulling System
10Cutting Knife
11Pouch Opening Device
12Air Flushing Device
13Filling Ⅰ
14Filling Ⅱ
15Pouch Stretching
16Top Sealing Ⅰ
17Top Sealing Ⅱ
18Outlet

Product Advantage

Spout Function

Center Spout/Cap

Corner Spout/Cap

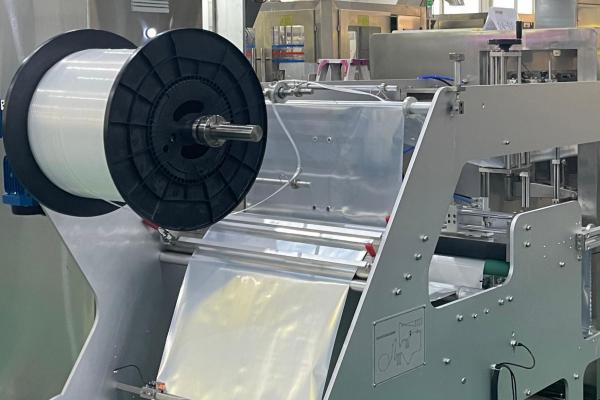

Zipper Function

Zipper function for Horizontal pouch forming filling and sealing machine

Shape Function

Special shape bar design
Vertical stand reduces fuel consumption

Product Application

BHD Series horizontal forming filling and sealing machine designed for doypack, with functions of making hanging hole, special shape, zipper and spout.
