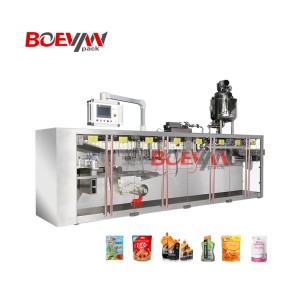

BHD-240DS Duplex Horizontal Doypack Packing Machine

Boevan BHD-240DS series Duplex Horizontal Doypack Packing Machine designed for doypack, shaped-doypack, and can be customized with functions of making hanging hole, zipper and spout. The HFFS packing machine also can powder, liquid, granule, etc. The horizontal standup pouch packing machine has 14 stations and operates fully automatically. BHD-horizontal form fill seal machine has servo advance system can easy to change computerized specification, and photocell system can improve running speed.

PRODUCT DETAIL

Video

Technical Parameter

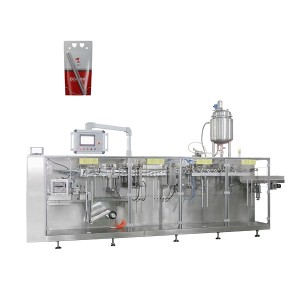

BHD series Horizontal Shaped Bag Form Fill Seal Machine (HFFS Machine) designed for Doypack but also can used for flat pouches , with function of making special shape, hanging-hole, zipper, spout. This horizontal roll film packaging machine is popular in the health and beverage industry, such as beauty oral liquid, sports functional drinks, coffee or juice concentrate, etc.

Model	Pouch Width	Pouch Length	Filling Capacity	Packing Capacity	Function
BHD-240S	100-240mm	120-320mm	2000ml	40-60 p.p.m	Doypack, Shape, Hanging-Hole,Flat-Pouch
BHD-240SZ	100-240mm	120-320mm	2000ml	40-60 p.p.m	Doypack, Shape, Hanging-Hole,Flat-Pouch,Zipper
BHD-240SC	100-240mm	120-320mm	2000ml	40-60 p.p.m	Doypack, Shape, Hanging-Hole,Flat-Pouch,Spout
BHD-240DS	80- 120mm	120-250mm	300ml	70-90ppm	Doypack, Shape, Flat-Pouch
