Doypack Packing Machine

Boevan BHD series horizontal doypack packing machine is a fully-automatic pouch form-fill-seal machine can used for stand-up pouch & flat-pouch. Can be customized with hanging-hole, zipper, spout, straw, and other function.

contact us

PRODUCT DETAIL

Want your product to stand out in the competitive market? A good packaging machine is a wise choice. Shanghai Boevan Packaging Machinery Co., Ltd. provides professional packaging solutions, not only matching production needs and ensuring precise filling, but also guaranteeing strong and aesthetically pleasing seals. Boevan specializes in providing packaging equipment and solutions for various flexible bags (stand-up pouches, spout pouches, zipper pouches, back-seal pouches, M-bags, etc.). Welcome to inquire!

Technical Parameter

Model Pouch Width Pouch Length Filling Capacity Packaging Capacity Function Weight Power Air Consumption Machine Dimensions(L*W*H)
BHD- 130S 60- 130mm 80- 190mm 350ml 35-45ppm DoyPack,Shape 2150 kg 6 kw 300NL/min 4720mm×1 125mm×1550mm
BHD-240DS 80- 120mm 120-250mm 300ml 70-90ppm DoyPack,Shape 2300 kg 11 kw 400 NL/min 6050mm×1002mm×1990mm

Padking Process

process1
  • 1Film Unwinding
  • 2Bottom Hole Punching
  • 3Bag Forming Device
  • 4Film Guide Device
  • 5Photocell
  • 6Bottom Seal Unit
  • 7Vertical Seal
  • 8Tear Notch
  • 9Servo Pulling System
  • 10Cutting Knife
  • 11Pouch Opening Device
  • 12Air Flushing Device
  • 13Filling Ⅰ
  • 14Filling Ⅱ
  • 15Pouch Stretching
  • 16Top Sealing Ⅰ
  • 17Top Sealing Ⅱ
  • 18Outlet

Product Application

BHD-130S/240DS Series designed for doypack,  with functions of making hanging hole,  special shape,  zipper and spout.

  • ◉Powder
  • ◉Granule
  • ◉Viscosity
  • ◉Solid
  • ◉Liquid
  • ◉Tablet
spout pouch (4)

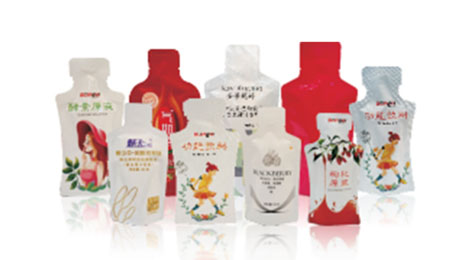

app (4)
app (6)
spout pouch (1)
app (3)
zipper pouch (1)
