Equipment Characteristics
Multilane Sachet Packing Machine olc control, eay to operate,
Fully-spectrum photocell, accurate positioning and stable operation.
Integrated control, high automation, save lobor costs servo driven,stable and reliable operation.
Technical Parameter of Multilane Packing Machine
Here, we mainly use multi-lane sachet packaging machines as an example to introduce the parameters of several high-speed multilane 3 or 4 side-sealed flat bag packaging machines that are currently the most popular. If you want to know more about single-lane packaging machines or more models, please contact me: info@boevan.cn or +86 184 0213 2146.
| Model | Pouch Length | Pouch Width | Flim Length(mm) | Lanes No. | Speed(bag/min) | Sealing Format |
| BVS-500F | 50-300 | 32-105 | 500 | 7 | 280-420 | 3 side seal or 4 side seal |
| BVS-900F | 50-300 | 32-105 | 900 | 14 | 560-840 | 3 side seal or 4 side seal |
| BVS-1200F | 50-120 | 40-105 | 1200 | 15 | 600-900 | 3 side seal or 4 side seal |
Multilane Pakcing Machine Details

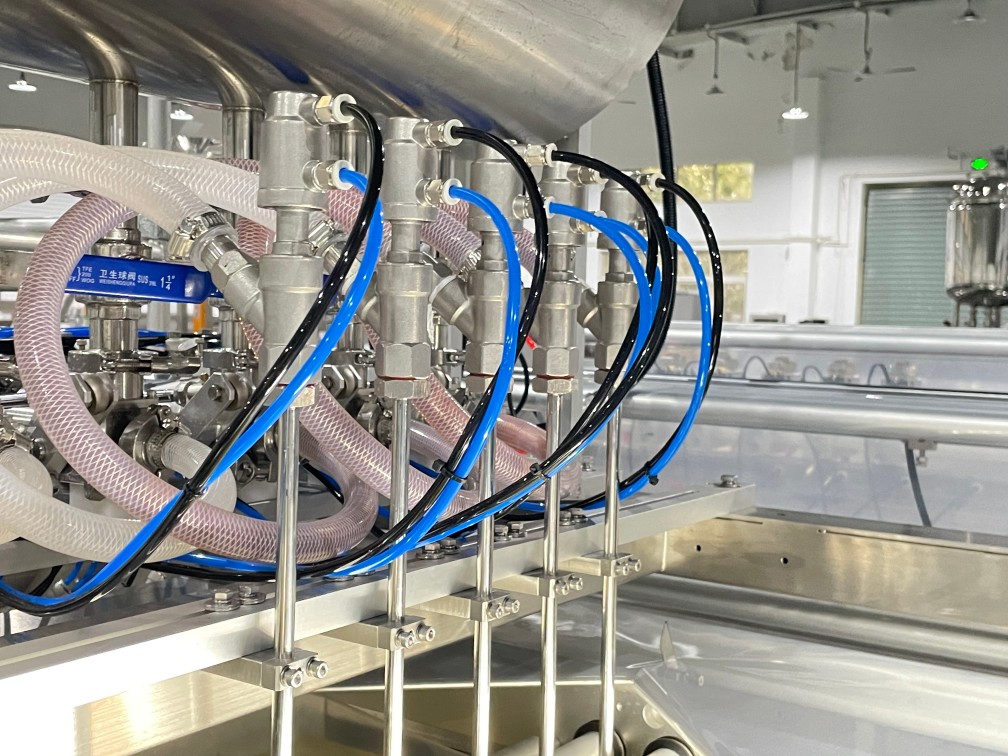

Multilane Filling
Multi-lane filling making huge improvement to packaging speed and capacity. Accurat filling, less deviation.

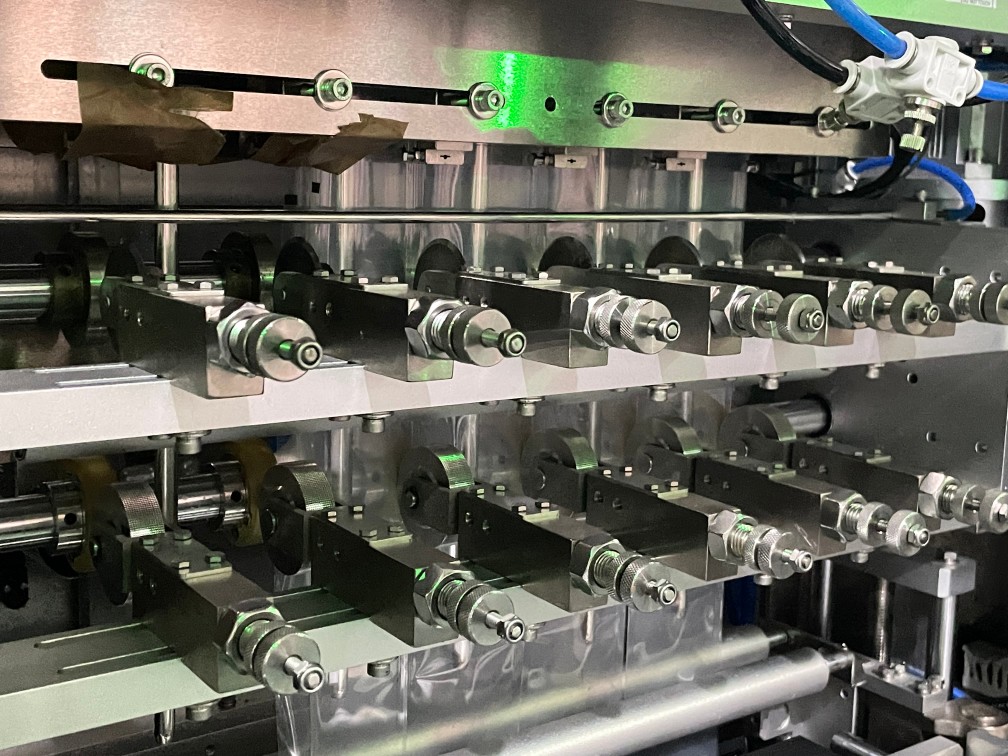

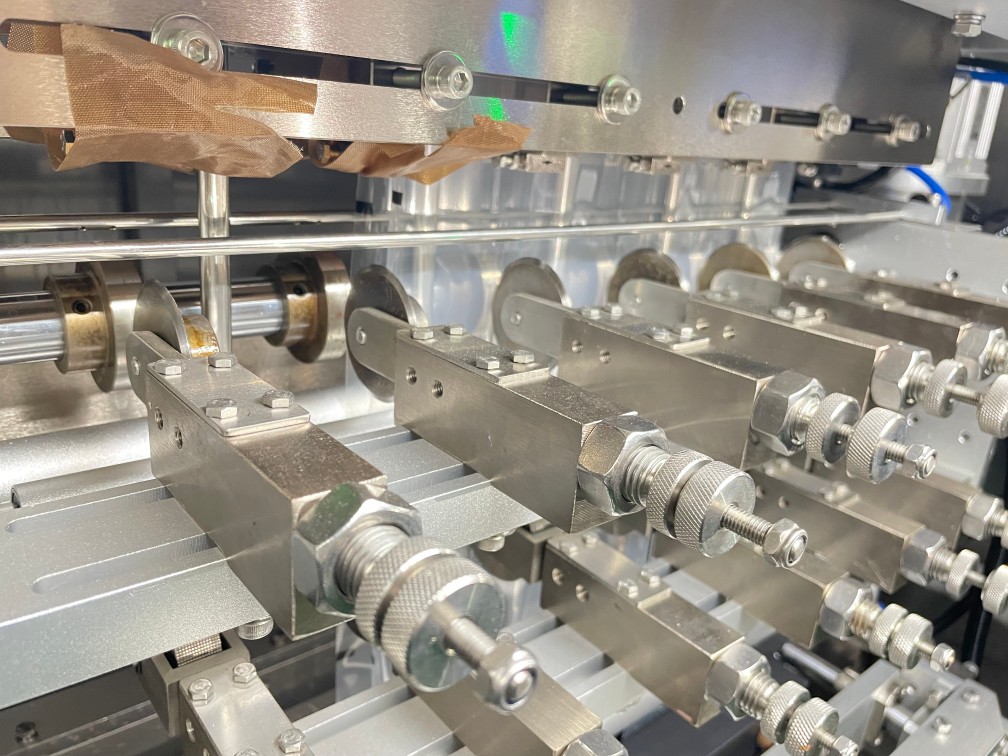

Servo Fouch Pulling System
Easy computerized specification change over, stable pouch pulling with less deviation, large torquemoment qualified for full-load running.

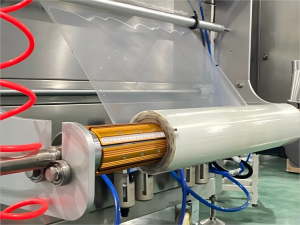

Auto Film-aligning System
Automatically align film position during machine operation, avoid the problem of pouch sealing misalignment.
Product Application

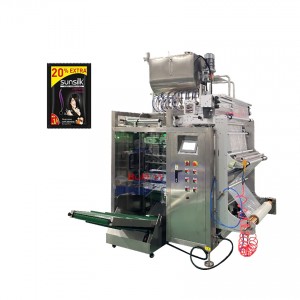

BVSF series vertical multi-lane sachet packing machine commonly used for packaging small flat bags such as shampoo, ketchup, cosmetic samples, mustard sauce, oil and vinegar bags, pesticides, etc.
