BHS-130 Reagents Sachet Packing Machine

Boevan BHS-130 horizontal forming filling sealing ( hffs ) machine designed for flat pouches, also can customized with zip-lock, spout, and other function. The reagents sachet packing machine fully complying with GMP and other standards. Welcome to Inquiries!

PRODUCT DETAIL

Video

Boevan BHS series Horizontal roll film packing machine designed for flat-pouch ( 3 side seal sachet, 4 side seal sachet ). This device is used for packaging medical gels, but it is also suitable for syringes, dental floss, sunscreen, etc. Does your product have something unique? If you haven't found the right packaging machine yet, feel free to contact me for consultation!

Technical Parameter

Model	Pouch Width	Pouch Length	Filling Capacity	Packaging Capacity	Function	Weight	Power	Air Consumption	Machine Dimensions(LWH)
BHS-110	50-110mm	50-130mm	60ml	40-60ppm	3 Side Seal, 4 Side Seal	480 kg	3.5 kw	100NL/min	20607501335mm
BHS-130	60-140mm	80-220mm	400ml	40-60ppm	3 Side Seal, 4 Side Seal	600 kg	4.5 kw	100 NL/min	28859701590mm

Padking Process

1Film Unwinding
2Bag Forming Device
3Film Guide Device

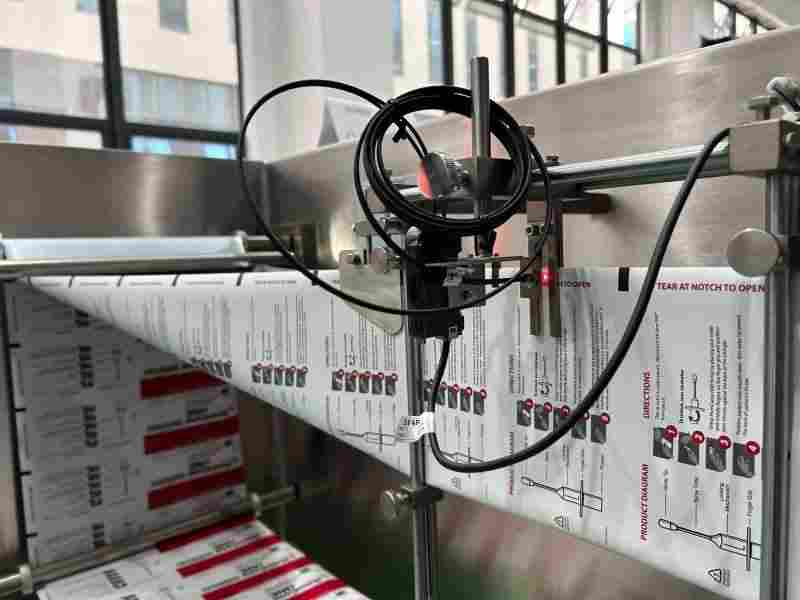

4Photocell
5Bottom Seal Unit
6Pouch Opening Device
7Vertical Sealing
8Filling
9Top Sealing Ⅰ
10Cutting
18Outlet

Product Advantage

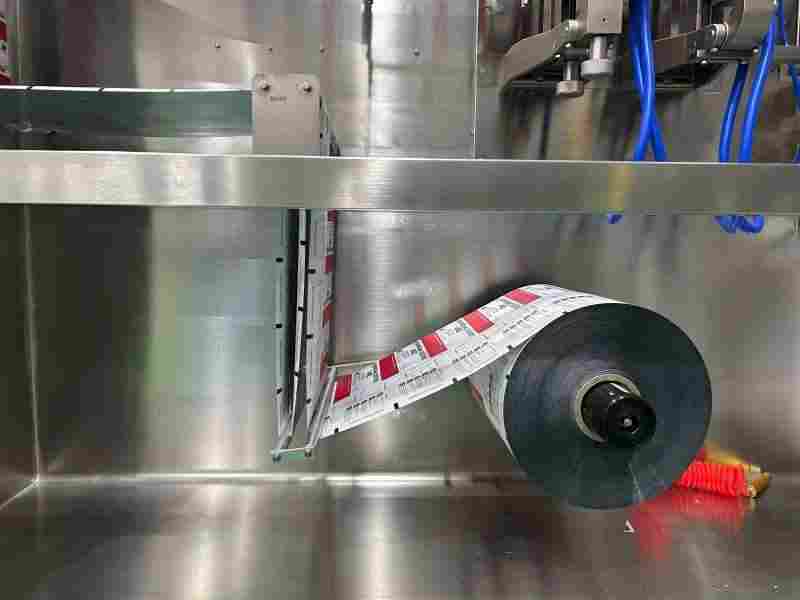

Film Unwinding Device

Easy to change

Light Walking Bean

Higher running speed

longer operation life span

Filling System

Different product use different filling system

Product Application

BHS-110/130 Series designed for flat, with functions of making hanging hole, special shape, zipper and spout. Usually used for liquid, cream, powder, granule, tablets, and other products. welcomet your contact us!
