Technical Parameter

Model Pouch Width Pouch Length Filling Capacity Packaging Capacity Function Weight Power Air Consumption Machine Dimensions(L*W*H)
BHD-240S 100-240mm 120-320mm 2000ml 40-60ppm DoyPack, Shape, Hanging Hole 2300kg 11kw 400 NL/min 7000×1243×1878mm

Packing Process

  • 1Film Unwinding Device
  • 2Bag Forming Device
  • 3Bottom Seal Unit
  • 4Vertical Sealing Ⅰ
  • 5Vertical Sealing Ⅱ
  • 6Photocell
  • 7Servo Pulling System
  • 8Cutting Knife
  • 9Slant Opening Cutting
  • 10Slant Opening Cutting
  • 11Spout Inserting
  • 12Spout Sealing Ⅰ
  • 13Spout Sealing Ⅱ
  • 14Pouch Opening Device
  • 15Air Flushing Device
  • 16Filling
  • 17Pouch Stretching
  • 18Top Sealing Ⅰ
  • 19Top Sealing Ⅱ
  • 20Outlet

Product Advantage

Servo Advance System

Servo Advance System

Easy computerized specification change
Stable pouch advance with less deviation
Big torquemoment of pouch advance, suitable for big volume

Photocell System

Photocell System

Full spectrum detection, Accurate detection of all light sources
High speed motion mode


Spout Function

Even spout seal with good appearance
High spout seal strength, no leakage

Product Application

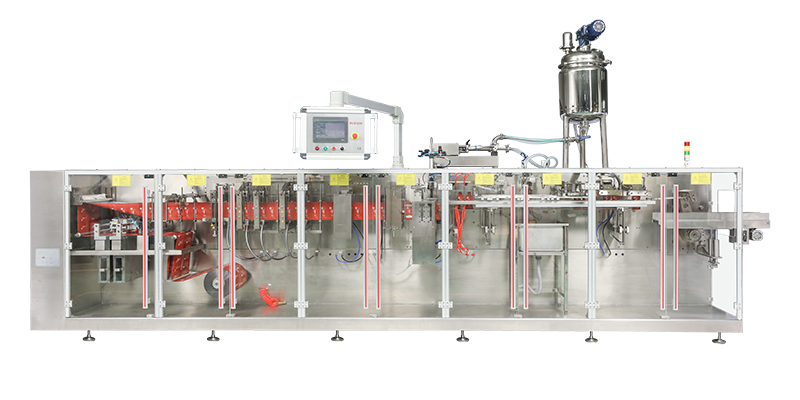

BHD-240 Series designed for big volume doypack,  with functions of making hanging hole,  special shape,  zipper and spout.

  • ◉Powder
  • ◉Granule
  • ◉Viscosity
  • ◉Solid
  • ◉Liquid
  • ◉Tablet
standard pouch (4)
standard pouch (3)
standard pouch (1)
standard pouch (1)
standard pouch (5)
standard pouch (2)
