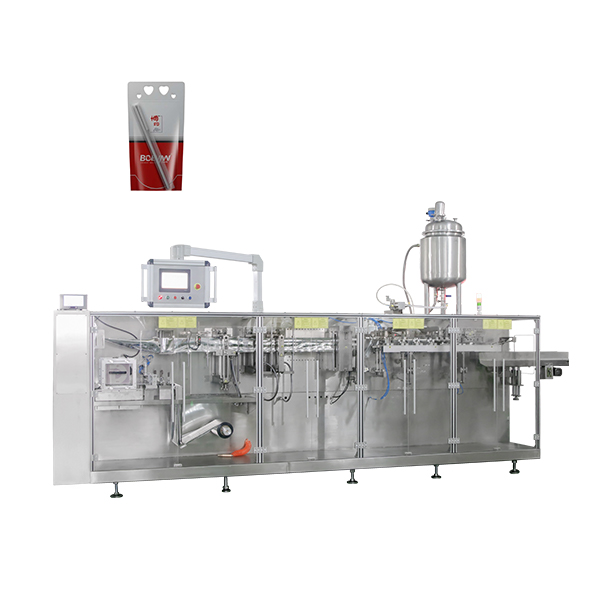

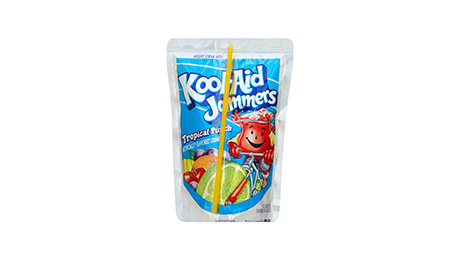

BHD-180S Doypack Juice Packing Machine with Straw

BHD-180S series horizontal forming filling and sealing machine designed for stand-up pouch, can be customized with spout, zipper, shaped, and other function. The type of the pouch packing machine usually used for pack juice, jelly, cooking oil, liquid detergent, ketchup, puree, etc.

PRODUCT DETAIL

Video

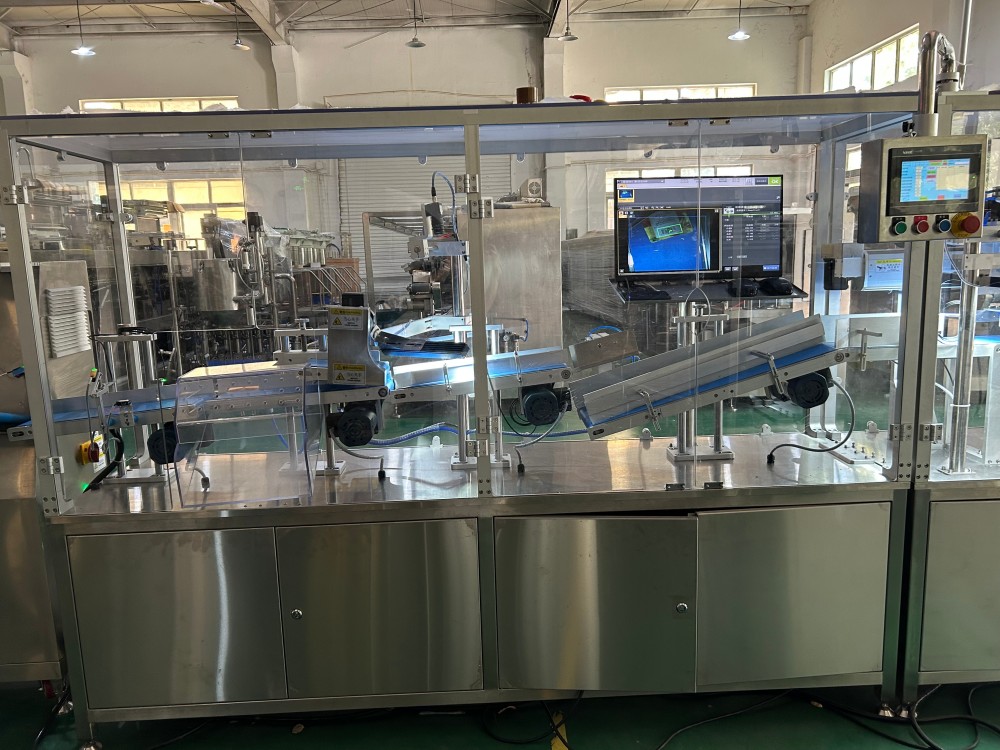

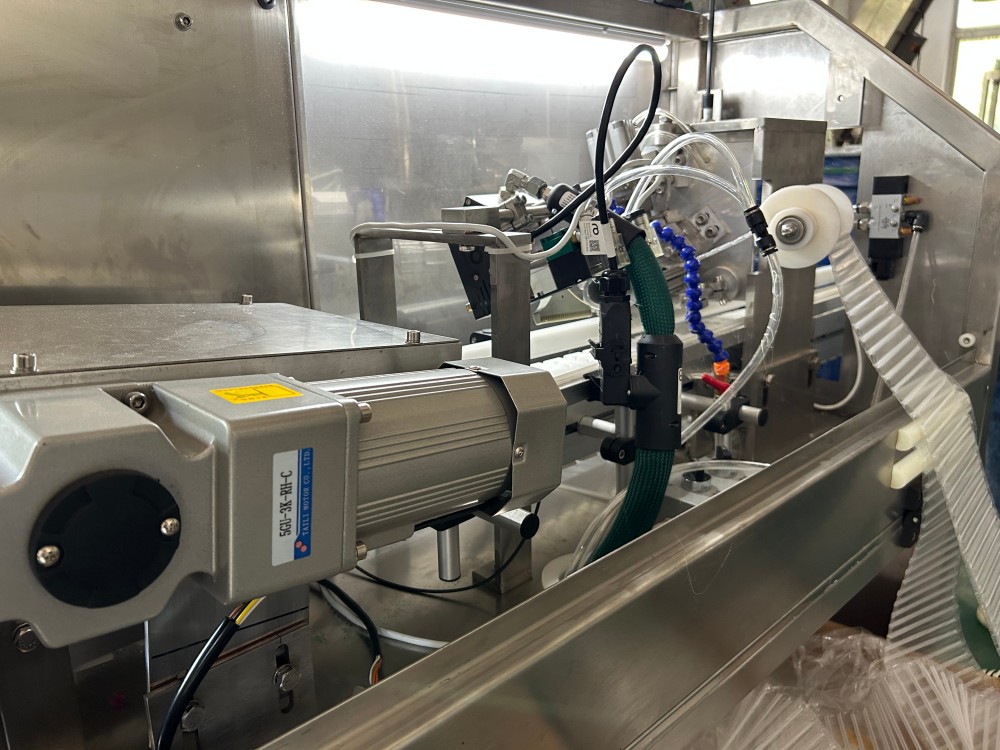

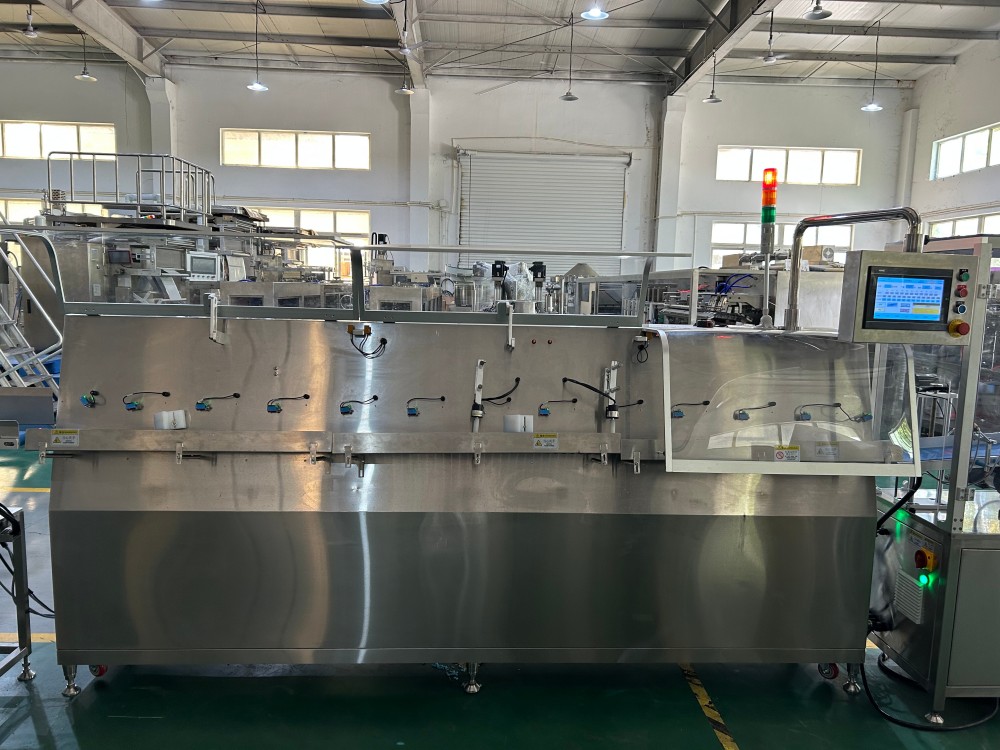

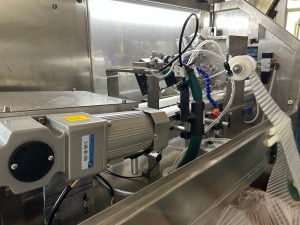

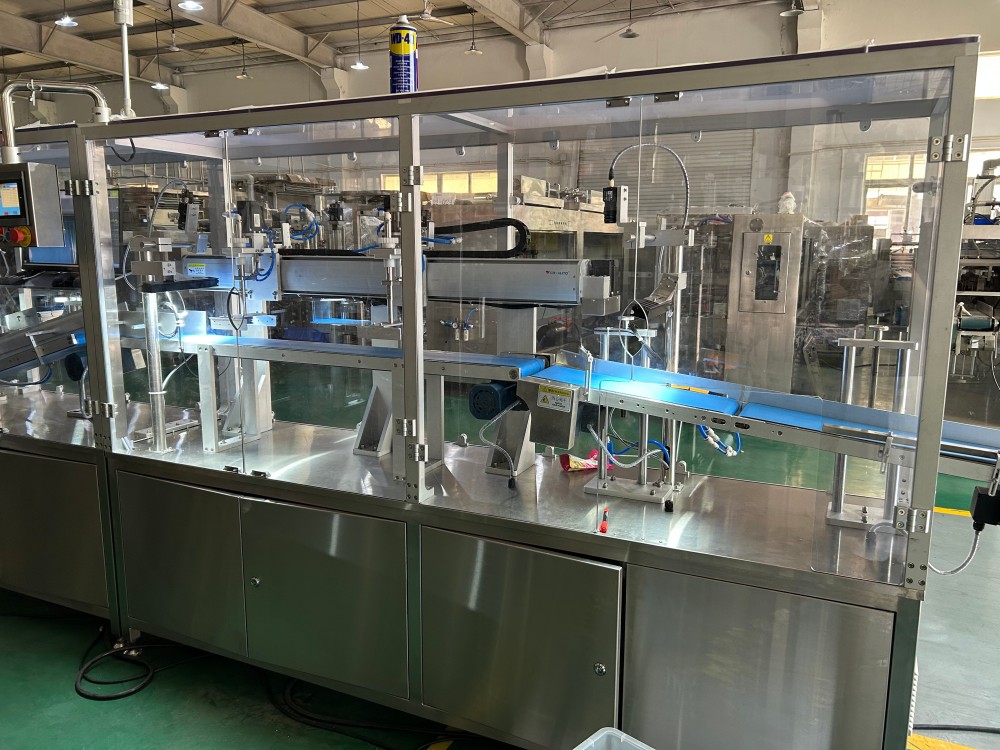

This is a solution for a juice packaging production line. It consists of an HFFS machine, metal detector, water sterilization system, multiple vision inspection systems, a tube attaching machine, and an automatic box packing system.

What is your product? What type of flexible bag packaging solution do you need? Leave a message to get the most suitable packaging solution for you!

Monnie

Email: info@boevan.cn

WhatsApp/WeChat: +8618402132146

Technical Parameter

Model

Pouch Width

Pouch Length

Filling Capacity

Packaging Capacity

Function

Weight

Power

Air Consumption

Machine Dimensions(L*W*H)

BHD- 180S

90-180mm

110-250mm

1000ml

35-45ppm

DoyPack,Shape,Zipper,Spout,

Hanging-Hole

2150 kg

9 kw

300NL/min

6090*1083*1908mm

BHD-280DS

90-140mm

110-250mm

500ml

80-100ppm

DoyPack,Shape,Zipper,Spout,

Hanging-Hole

2300 kg

15 kw

400 NL/min

7800*1300*1878mm

Padking Process

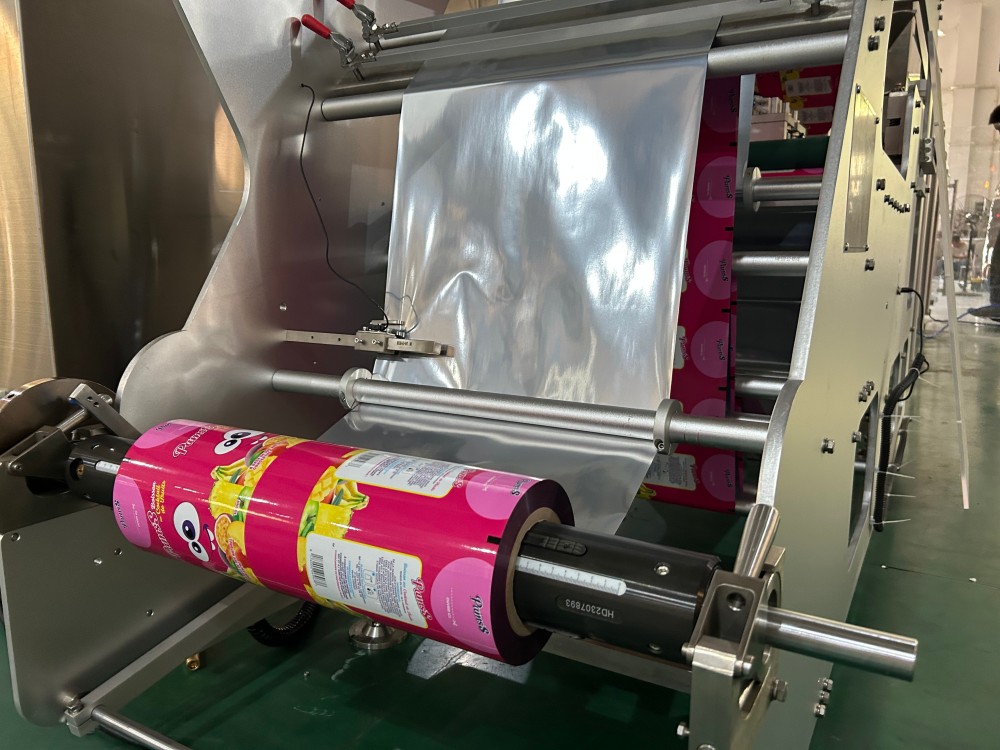

1Film Unwinding
2Bottom Hole Punching
3Bag Forming Device
4Film Guide Device
5Photocell
6Bottom Seal Unit
7Vertical Seal
8Tear Notch
9Servo Pulling System
10Cutting Knife
11Pouch Opening Device
12Air Flushing Device
13Filling Ⅰ
14Filling Ⅱ
15Pouch Stretching
16Top Sealing Ⅰ
17Top Sealing Ⅱ
18Outlet

Product Advantage

Servo Advance System

Easy computerized specification change
Stable pouch advance with less deviation
Big torquemoment of pouch advance, suitable for big volume

Photocell System

Full spectrum detection, Accurate detection of all light sources
High speed motion mode

Shape Function

Special shape bar design
Vertical stand reduces fuel consumption

Product Application

BHD-180S/280DS Series servo horizontal packing machine designed for doypack, with functions of making hanging hole, special shape, zippe, spout and other.
